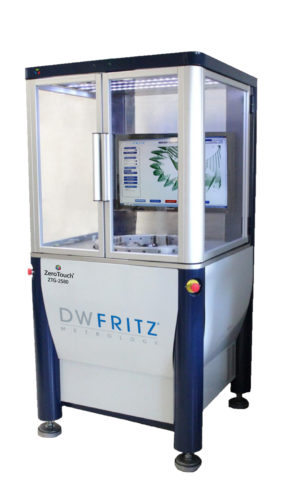

ZTG-2580

A New Way to Inspect Gears
Using multiple laser triangulation sensors that acquire millions of data points per sensor, the ZeroTouch® ZTG-2580 gear inspection system performs 3D inspections of complex gear geometries and surface defects with speed, accuracy, and flexibility.

Features & Benefits

• 100% inspection of gear and teeth geometries with cycle times from 30 seconds per part
• Installed in the immediate vicinity of the production line
• Fast identification of production defects, enabling adjustment of upstream processes
• 3D inspection of complex geometries using multiple sensors
• Captures dense precision point cloud data with speed and accuracy
• Advanced analytics integration with application-specific tools
• Profile, helix, pitch, and runout measurements
• Surface defect detection and characterization capabilities
• Multiple laser line triangulation metrology sensors
• Real-time data capture and storage for SPC analysis
